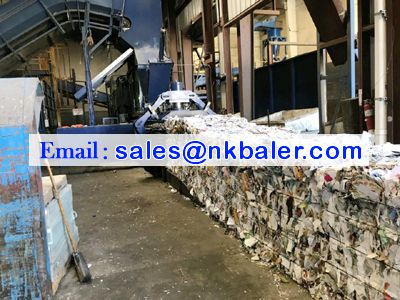

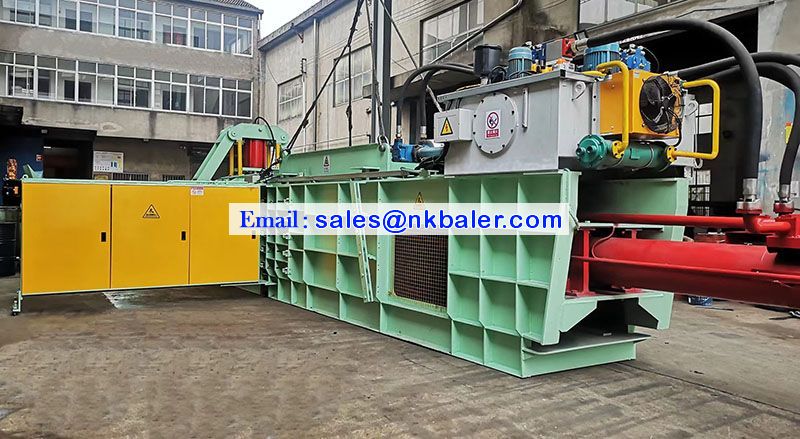

Newspaper Horizontal Baler machine specialized in recycling and compressing loose materials: plastic films, PET bottles, plastic pallets, waste paper, grass, fiber, used clothes, cartons, cardboard trims, scrap, etc
Key Features
1. Adopts photoelectric switch for automatic operation; auto-monitors hopper level and controls conveyor movement, saving time and ideal for high-volume material sites.
2. Equipped with a unique automatic strapping device featuring fast speed, simple frame and stable motion; bale size and weight can be customized as required.
3. Built-in ruffler and cutting function processes long paper or cardboard during platen movement to prevent jams and ensure smooth operation.
4. Complies with international standard electric circuit layout, matched with graphic operation instructions and detailed parts marks for easy operation and maintenance.
| Name | parameter |
| Bale size | 1100mm（W）×1100mm（H）×～1800mm(L) |
| Material type | Scrap Kraft paper, Newspaper, Cardboard, Film, |
| Material density | 650～750Kg/m3（Moistures 12-18%） |
| Feed opening size | 2400mm×1100mm |
| Main motor power | 37KW×2sets+15KW |
| Main cylinder | YG300/230-2900 |
| Main cylinder force | 200T |
| Capacity | 28-30Ton/hour |
| Max. Pressure | 30.5MPa |
| Mainframe weight(T) | About 34 tons |
| Oil tank | 2m3 |
| Mainframe size | About 11×4.3×5.8M（L×W×H） |
| Tie wire line | 4 line φ3.0-3.2mm3 iron wire |
| Pressure time | ≤30S/ (go and back for empty load) |
| Conveyor weight | About 7 tons |
| Conveyor size | 2000*14000MM |
| terra hole size | 7.303M（L）×3.3M（W）×1.2M（deep） |
| Conveyor motor | 7.5KW |
| Cool tower motor | 0.75KW（water Pump）+0.25（Fan） |
