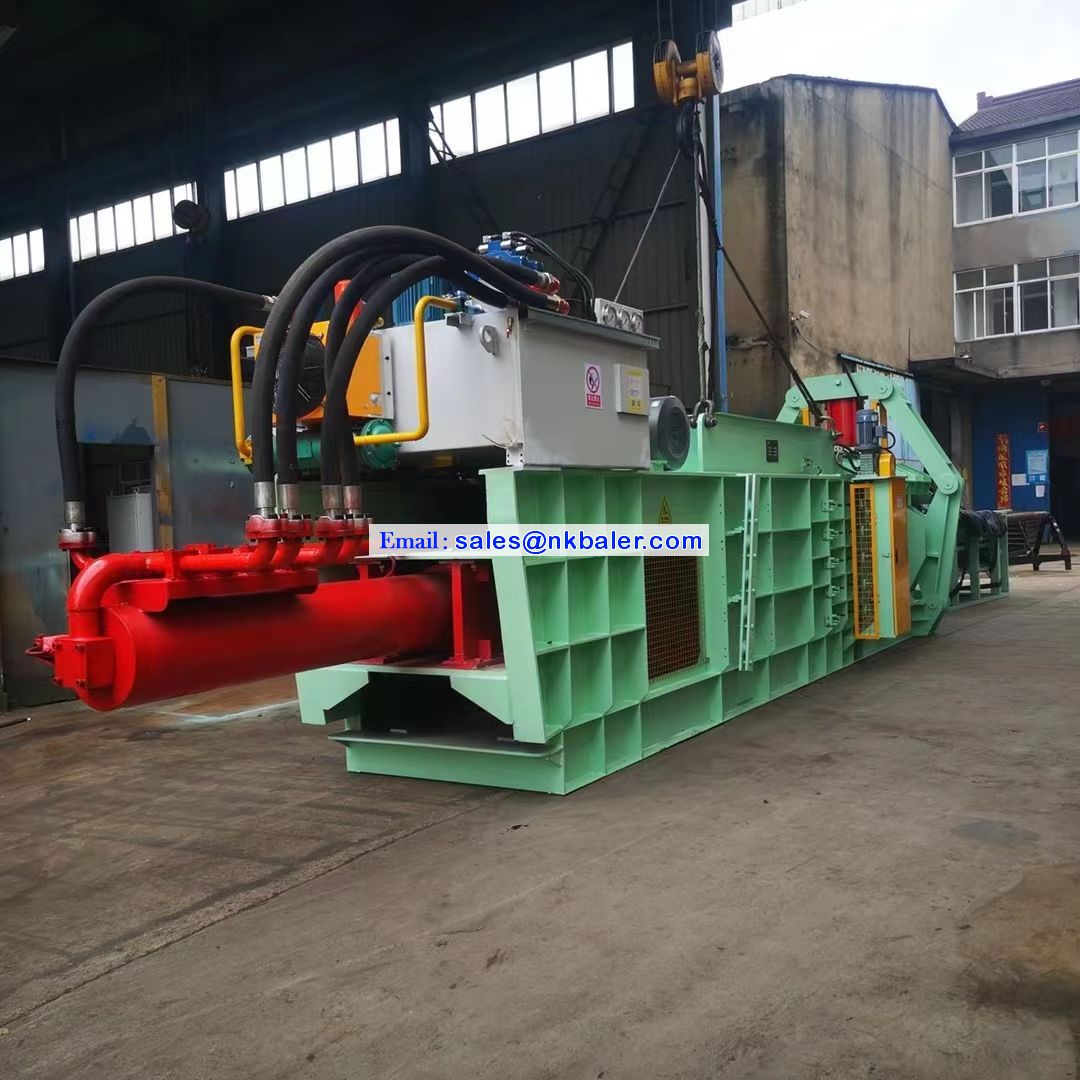

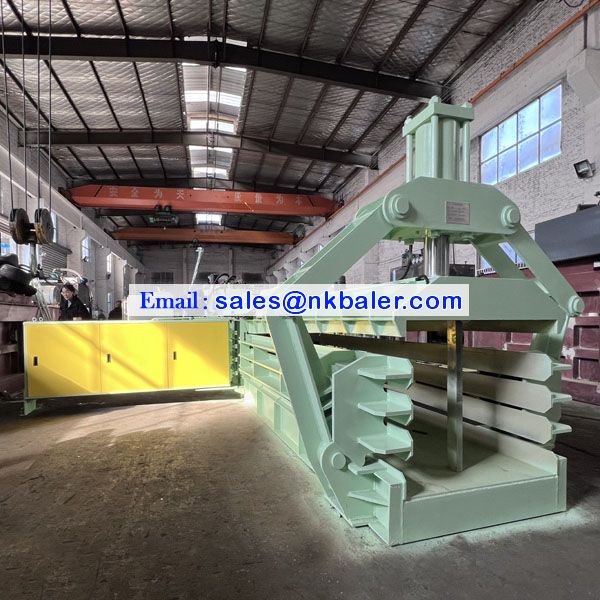

NKW125Q Automatic Tie Hydraulic Bale Machine is an efficient and environmentally friendly waste paper compressed equipment. It is mainly used to compress the loose materials such as waste paper, plastic film, metal sheet into pieces to facilitate transportation and processing. The machine uses a hydraulic driver, which has the characteristics of high pressure, high efficiency, and low noise. It can adjust the compression force according to different materials to achieve the best compression effect. At the same time, the machine also has an automatic bundling function, which can greatly improve production efficiency. Widely used in the field of waste paper recycling and packaging industry.
NKW125Q Automatic Tie Hydraulic Bale Machine is an efficient and environmentally friendly waste paper compressed equipment. It is mainly used to compress the loose materials such as waste paper, plastic film, metal sheet into pieces to facilitate transportation and processing. The machine uses a hydraulic driver, which has the characteristics of high pressure, high efficiency, and low noise. It can adjust the compression force according to different materials to achieve the best compression effect. At the same time, the machine also has an automatic bundling function, which can greatly improve production efficiency. Widely used in the field of waste paper recycling and packaging industry.
The machine is welded with high -strength steel plates, the structure is strong and durable, and the service life is long. The operation is simple and convenient. Just press the button to complete the compression and stagnation process. In addition, the machine also has a safety protection device to ensure the safety of the operator.
In short, NKW125Q Automatic Tie Hydraulic Bale Machine is a superior performance, safe and reliable waste paper compression equipment, which is suitable for enterprises of various scale.
| Item | Name | Parameter |
| mainframe parameter | Bale size | 1100mm（W）×1100mm（H）×～1600mm(L) |
|
| Material type | Fiber Scrap Kraft paper, Carton, Cardboard ,Soft Film, |
|
| Material density | 500～600Kg/m3（Moisture12-15%） |
|
| Feed opening size | 2000mm×1100mm |
|
| Output | 9-12tons/hour |
|
| Main motor power | 37.5KW+11KW |
|
| Capacity | 10-12Ton12-15Ton |
|
| Main cylinder | YG220/160-2900 |
|
| Main cylinder force | 125T |
|
| Max. system working force | 21MPa |
|
| Mainframe weight(T) | About 21 tons |
|
| Mainframe size | About 11×2.3×2.9M（L×W×H） |
|
| Tie wire line | 4 line φ2.75～φ3.0mm3 iron wire |
|
| Pressure time | ≤30S/ (go and back) |
| Chain conveyor technology | Model | NK-III |
|
| Conveyor weight | About 5 tons |
|
| Conveyor size | 2000*12000MM |
|
| Conveyor motor | 7.5KW |
| Cool tower | Cool tower motor | 0.75KW（water Pump）+0.25（Fan） |
