Product Description

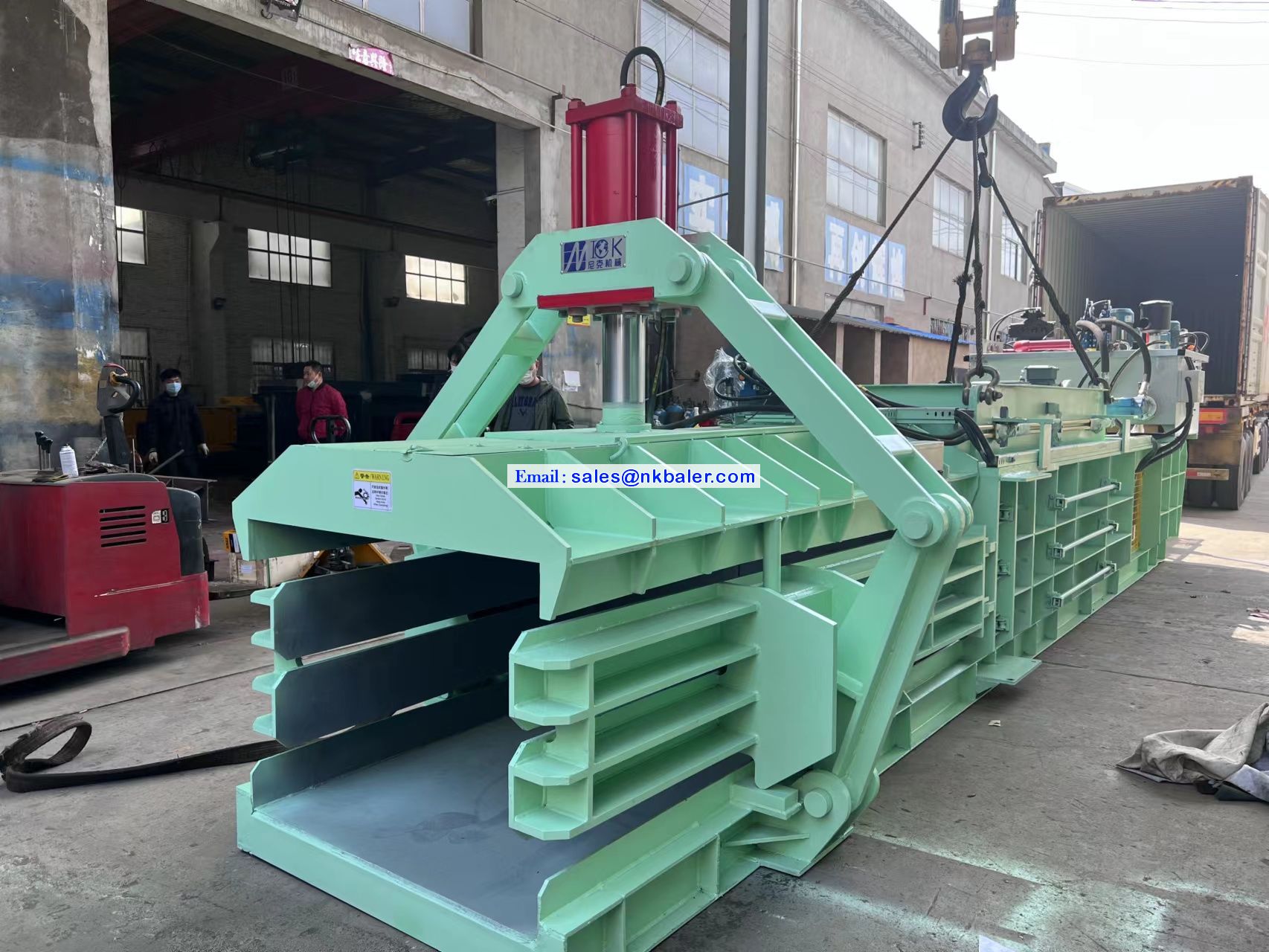

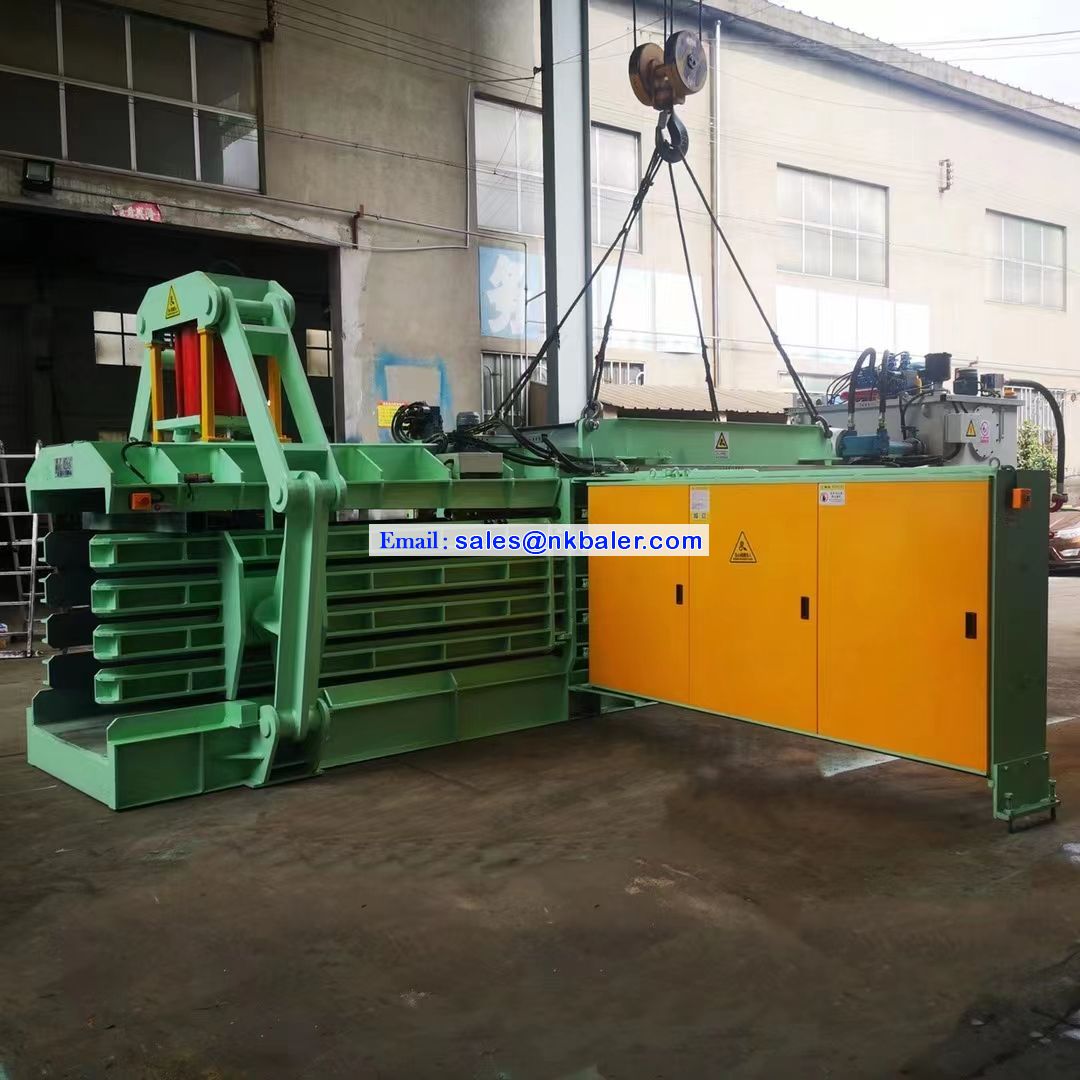

White paper horizontal baler is a mechanical device specially designed to compress lightweight materials such as paper into blocks. It is commonly used in recycling bins, printing plants, offices, and other places where large amounts of paper waste need to be processed. This baler features a horizontal compression chamber that efficiently handles large volumes of paper, compressing it into blocks that are easy to store and transport.
The working principle of the white paper horizontal baler is to apply pressure through a hydraulic system or mechanical drive to compress the input paper to a preset density. Compressed paper blocks are often bundled or packaged to maintain their shape and facilitate handling. Such machines are often equipped with automatic or semi-automatic control systems that can adjust compression strength and cycle time according to operational needs.
Benefits of using a white paper horizontal baler include improved space utilization, since compressed paper blocks take up much less space than uncompressed paper; reduced shipping costs, since more compact blocks reduce the number and expense of transportation; and environmental protection , because the compressed paper blocks can be more easily sent to recycling points for reuse.
In short, the white paper horizontal baler is an effective tool for processing paper waste. By compressing paper, it not only improves processing efficiency, but also contributes to resource recycling and environmental protection.
|
Item
|
Name
|
parameter
|
|
mainframe
parameter
|
Bale size
|
1100mm（W）×1100mm（H）×～1600mm(L)
|
|
|
Material type
|
Scrap Kraft paper, Newspaper,
Cardboard ,Soft Film，
|
|
|
Material density
|
600～700Kg/m3(Mositure12-18%）
|
|
|
Feed opening size
|
2400mm×1100mm
|
|
|
Main motor power
|
45KW+15kw
|
|
|
Main cylinder
|
YG280/210-2900
|
|
|
Capacity
|
12-15 ton /hour
|
|
|
Main cylinder force
|
160T
|
|
|
Max. system working force
|
30.5MPa
|
|
|
Mainframe weight(T)
|
About 25 tons
|
|
|
Oil tank
|
2m3
|
|
|
Mainframe size
|
About 11×4.3×5.8M（L×W×H）
|
|
|
Tie wire line
|
4 line φ3.0～φ3.2mm3 iron wire
|
|
|
Pressure time
|
≤30S/ (go and back for empty load)
|
|
Chain conveyor technology
|
Model
|
NK-III
|
|
|
Conveyor weight
|
About 7 tons
|
|
|
Conveyor size
|
2000*14000MM
|
|
|
Conveyor motor
|
7.5KW
|
|
Cool tower
|
Cool tower motor
|
0.75KW（water Pump）+0.25（Fan）
|
About Us
Nick machinery specialized in hydraulic machinery，Hydraulic Baling Machine for Waste Material, baler application, waste paper Balers ,baling machine, baling press, recycling baler, Baling Presses & Balers, hydraulic baling press, baler, balers and also shredder ,crusher , Double Shaft Shredder,Tyre Crusher,Shredder,Copper Wire recyclingMachine, Heavy Crusher ect ,packaging machinery equipmentdevelopment, production, sales, service as one of the environmental protection products company, Our products are mainlyabsorbing Germany ,European and Americantechnology, products has already exported more than 60 countriesand regions at home and abroad. The company adhering to the "To change made- in-China in the international market influence" of the target as the prerequisite, to ensure that the "Products service maximization,Customer benefit maximization" asthe enterprise production policy， mainly on waste paper, waste plastics, scrap metal, fiber, agricultural straw recycling industry,it‘s for enterprise to providing convenient,fast, safe and economic solutions,now we have after-sales service center like India, Dubai, Australia, the United States and so on and well received by users.
Video
FAQ
Q1: What materials are the white paper horizontal balers mainly used for?
The white paper horizontal baler is mainly used to compress and pack paper, including office paper, newspapers, cartons, cardboard and other paper materials.
Q2: How does this baler work?
This machine compresses the input paper into blocks through a hydraulic system or mechanical drive. Pressure is usually applied by a movable compression plate, which pushes the material towards a relatively fixed end, forming a compact mass.
Q3: What are the benefits of using a white paper horizontal baler?
Using this baler can significantly reduce the volume of paper waste, save storage space, reduce transportation costs, and contribute to environmental protection because it promotes the recycling and reuse of paper.
Q4: Is the operation of the white paper horizontal baler complicated?
Most white paper horizontal balers are designed with user-friendly interfaces and are relatively simple to operate. They may contain automatic or semi-automatic control systems that allow operators to easily set compression parameters and initiate the packaging process.
Q5: What work is required to maintain a white paper horizontal baler?
Maintenance usually includes regular cleaning of the compression chamber, checking whether the hydraulic system and mechanical components are working properly, keeping electrical connections in good condition, and replacing any worn parts in a timely manner. Proper maintenance can ensure long-term stable operation of the equipment.
