Waste Paper Horizontal Baling Compactor can be used for cartons, paper, plastic film, old corrugated cardboard (OCC), old newspaper (ONP), old magazines (OMG) and other packaging materials. It is also useful in baling other waste materials, such as office waste and polystyrene packaging for easy storage until disposal.
Main Structure Of Waste Paper Horizontal Baling Compactor
The Baler Machine can be divided into five parts in the following.
Host Frame System
High quality thick steel plate, with Gas shielded welding sturdy frame, advanced mechanical design makes the equipment durable.
Conveying System
High quality thick beam frame, high-strength steel conveyor belt style.

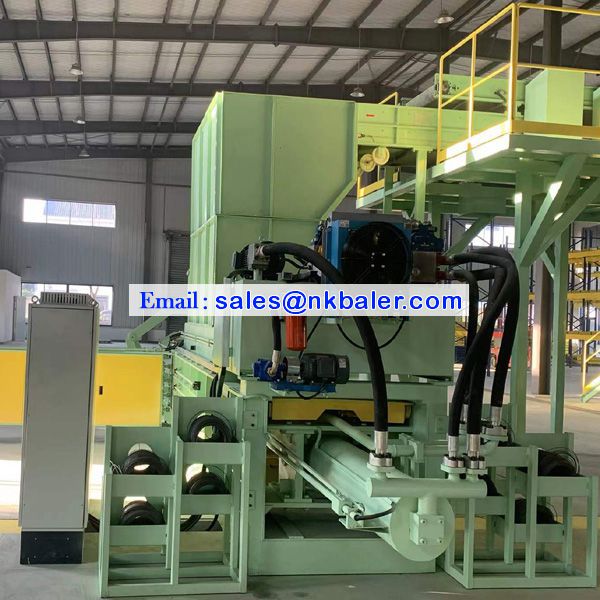

Hydraulic System
Hydraulic pumps, solenoid valves and hydraulic cylinder seals and other key parts use imported components, making high packing pressure, low-speed block , durable and small noise.
Electronic Control System
NKW80Q Full automatic Baler Machine Adopt siemens motor, original PLC programmable controller. Other buttons of Baler Machine, sensors, infrared shooting, remote control systems and other key parts adopt imported components, realizing simple operation and easy maintenance.
Security Alarm System
Program control is automatically locked down five security. Alarm malfunction in the power supply phase, power procedural errors, pressure high, people mistakenly packaged mouth, all can automatically shutdown and alarm.

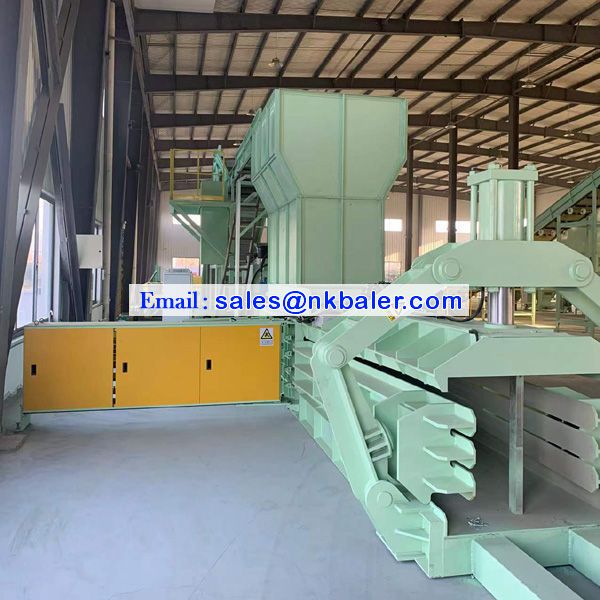

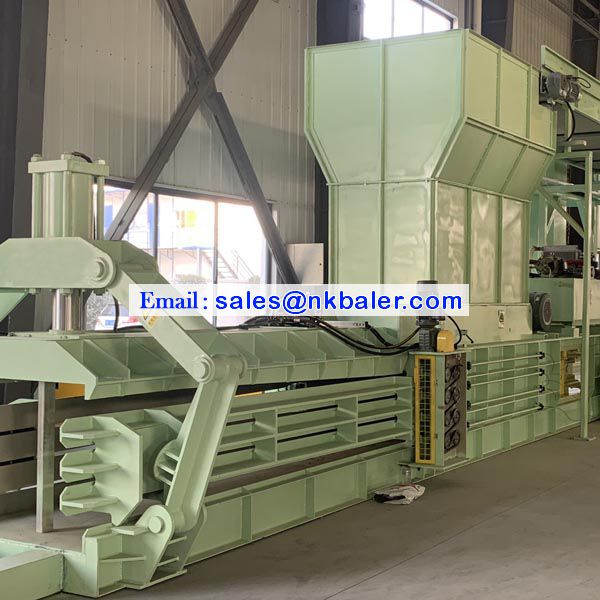

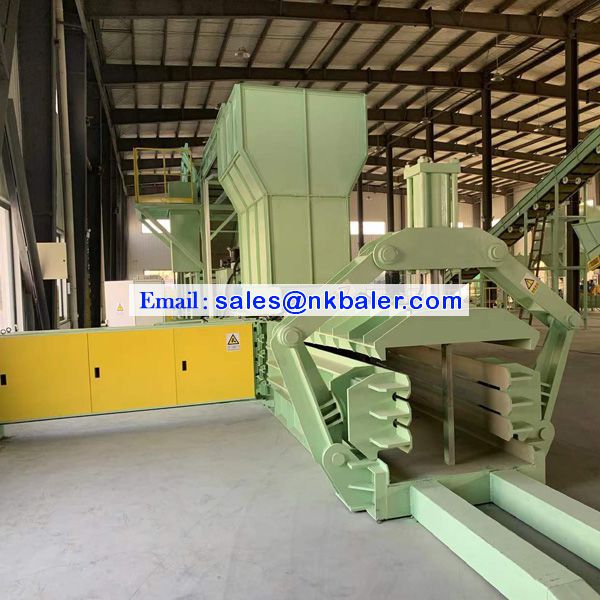

NKW80Q Waste Paper Horizontal Baling Compactor
Item |
Name |
parameter |
mainframe parameter |
Bale size |
1100mm(W)×850mm(H) |
Material type |
Scrap Kraft paper, Carton, Cardboard ,Soft Film |
|
Material density |
300~400Kg/m3(moistures 12-15%) |
|
Feed opening size |
1500mm×800mm |
|
Main motor power |
30KW |
|
Capacity |
3-5T/Hour |
|
Main cylinder |
YG220/160-2600 |
|
Pressure (KN) |
800KN |
|
Max. system working force |
21MPa |
|
Mainframe weight(T) |
About 13 tons |
|
Mainframe size |
About9.8m×4.3m×1.4m(L×W×H) |
|
Tie wire line |
4 line φ2.75~φ3.0mm3 iron wire |
|
Pressure time |
≤30S/ (go and back) |
|
Chain conveyor |
Size |
8000*800MM |
Motor power |
4KW |
|
Control way |
Automatic / manual |
