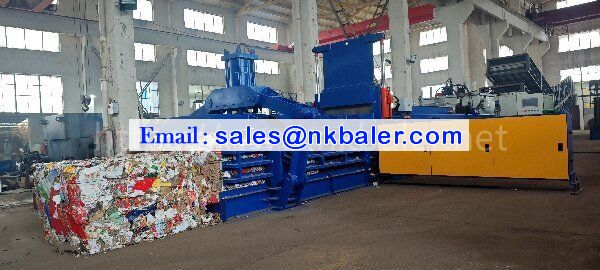

NKW60Q RDF Hydraulic Bale Machine is an efficient and environmentally friendly garbage compressed equipment, which is mainly used to deal with domestic waste, industrial waste and construction waste. The machine uses a hydraulic driver and has a large compression force, which can compress the garbage into a firm shape and greatly reduce the volume of garbage. Bale Size is 750mm (W) × 850mm (H) × ～ 1400mm (L), which is suitable for various scale waste treatment places. Main Motor Power provides 22KW+11kW, providing strong motivation support. Mainframe Weight is about 10 tons, with strong structure and long service life. By compressing garbage into a firming shape,NKW60Q RDF Hydraulic Baler Machine can greatly reduce the volume of garbage, facilitate transportation and treatment, while reducing waste treatment costs and reducing environmental pollution.
|
Item |
Name |
parameter |
|
mainframe parameter |
Bale size |
750mm（W）×850mm（H）×～1400mm(L) |
|
|
Material type |
Scrap Kraft paper, Carton, Cardboard ,Soft Film |
|
|
Material density |
300～400Kg/m3 |
|
|
Feed opening size |
1200mm×750mm |
|
|
Main motor power |
22KW+11KW |
|
|
Main cylinder |
YG180/125-2600 |
|
|
Shrink Cylinder |
YG180/125 |
|
|
Shrink way |
Three side shrink month |
|
|
Main cylinder force |
60T |
|
|
Max. system working force |
21MPa |
|
|
Output capacity |
About1-3tons /Hour |
|
|
Mainframe weight(T) |
About 10 tons |
|
|
Tie wire line |
4 line φ2.75～φ3.0mm3 iron wire |
|
|
Pressure time |
≤25S/ (go and back) |
|
|
Machine size |
6.7M*3.6M*2.3M |
|
Chain conveyor |
Size |
1200㎜（W）*12000㎜（L） |
|
|
Motor power |
5.5KW |
|
|
Control way |
Automatic / manual |
