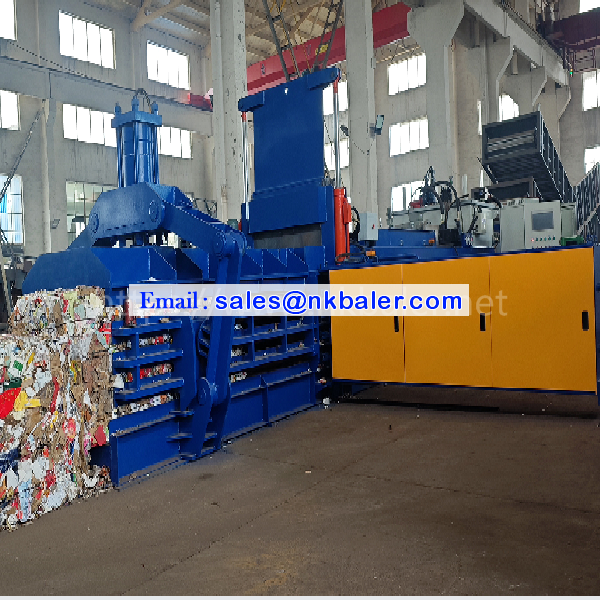

NKW200Q Horizontal Baler Machine with PLC control The use of high-pressure, fast-powered large-scale automatic hydraulic balers, mainly used to compress waste paper, corrugated paper, cardboard boxes, plastic waste, cola bottles, cans and other materials, the average output of 20-25 tons per hour, which Taiwan machine motor using Siemens, domestic high-quality hydraulic system equipment, the United States imported seals to ensure the quality of the equipment,Waste paper baler machine also called waste paper baling machine ,it main used for waste paper ,scrap paper ,cardboard paper ,soft paper ,A4 paper ect. recycling ,most of small or big factory can use it , Automatic Horizontal Baling Press Machine, High Quality Automatic Horizontal Baling Press Machine, Automatic Baler For Waste Paper，Nick company produce this machine main function for reducing transport cost and easy storage ,reduce labor cost
NKW200Q Automatic Horizontal Baling Press Machine
|
Item |
Name |
parameter |
|
mainframe parameter
|
Bale size |
1100mm（W）×1250mm（H） |
|
Material type |
Scrap Kraft paper, Newspaper, Cardboard ,Soft Film, Plastic， |
|
|
Material density |
800～900Kg/m3（Moistures 12-18%） |
|
|
Feed opening size |
2400mm×1100mm |
|
|
Main motor power |
45KW×2 |
|
|
Main cylinder |
YG300/220-2900 |
|
|
Pressure (KN) |
2000KN |
|
|
Capacity |
32-35Ton/hour |
|
|
Max. system working force |
30.5MPa |
|
|
Mainframe weight(T) |
About 32 tons |
|
|
Oil tank |
2m3 |
|
|
Mainframe size |
About 11×4.3×5.8M（L×W×H） |
|
|
Tie wire line |
5 line φ2.75～φ3.0mm3 iron wire |
|
|
Pressure time |
≤30S/ (go and back for empty load) |
|
|
Chain conveyor technology |
Model |
NK-III |
|
Conveyor weight |
About 9 tons |
|
|
Conveyor size |
14000*2000MM |
|
|
terra hole size |
7.303M（L）×3.3M（W）×1.2M（deep） |
|
|
Conveyor motor |
7.5KW |
|
|
Cool tower |
Cool tower motor |
0.75KW（water Pump）+0.25（Fan） |
