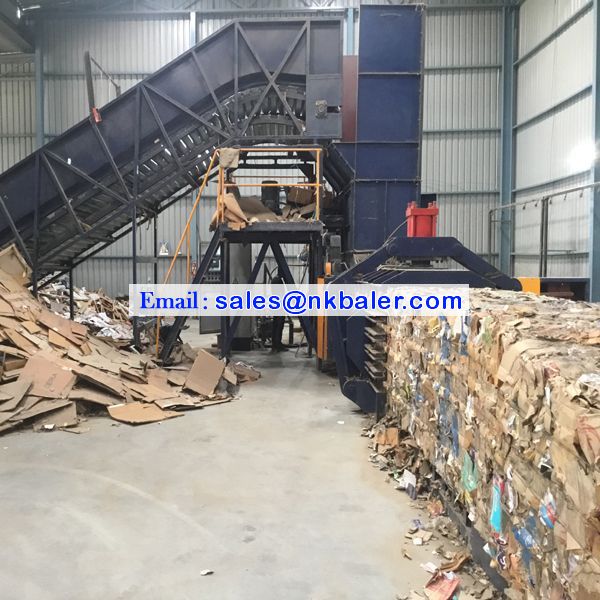

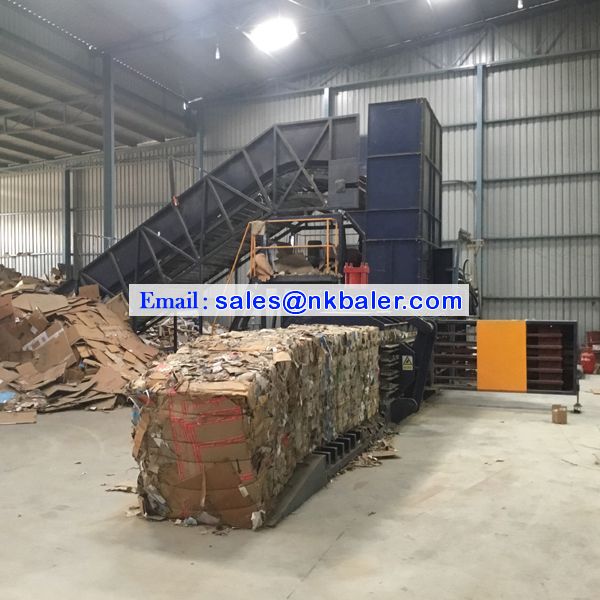

NKW220Q Cardboard Baling Machine is a compact and efficient machine designed for baling cardboard waste. It features a simple operation, high efficiency, and low noise level. The machine can process various types of cardboard, including corrugated cardboard, paperboard, and cardboard boxes. The bale produced by the machine has a high density and can be easily transported and recycled. NKW220Q Cardboard Baling Machine is an ideal solution for businesses and organizations that generate large amounts of cardboard waste and need to reduce their environmental impact.
NKW220Q Cardboard Baling Machine is a space-saving and powerful machine that is specifically designed for the purpose of baling cardboard waste. It can process various types of cardboard, including corrugated cardboard, paperboard, and cardboard boxes. This machine boasts a user-friendly operation, high efficiency, and low noise level. The bales produced by the NKW220Q have a high density, making them easy to transport and recycle. This machine is an excellent solution for businesses and organizations that generate significant amounts of cardboard waste and are looking to reduce their environmental footprint. With its compact size and straightforward design, NKW220Q Cardboard Baling Machine is perfect for small to medium-sized businesses seeking an eco-friendly way to manage their cardboard waste.
|
Item |
Name |
parameter |
|
mainframe parameter |
Bale size |
1100mm（W）×1250mm（H）×～2200mm(L) |
|
|
Material type |
OCC Newspaper, Cardboard ,Soft Film, Plastic， |
|
|
Material density |
600～700Kg/m3（Moistures 12-18%） |
|
|
Feed opening size |
2400mm×1100mm |
|
|
Main motor power |
45KW×2sets |
|
|
Main cylinder |
YG350/220-2900 |
|
|
Main cylinder force |
200T |
|
|
Max working force |
30.5MPa |
|
|
Mainframe weight(T) |
About 35 tons |
|
|
Capacity |
32-35 ton per hour |
|
|
Oil tank |
2m3 |
|
|
Mainframe size |
About 11.5×4.8×5.8M（L×W×H） |
|
|
Tie wire line |
5 line φ2.75～φ3.0mm3 iron wire |
|
|
Pressure time |
≤35S/ (go and back for empty load) |
|
Chain conveyor technology |
Model |
NK-III |
|
|
Conveyor weight |
About 11 tons |
|
|
Conveyor size |
2000*14000MM |
|
|
terra hole size |
7.303M（L）×3.3M（W）×1.2M（deep） |
|
|
Conveyor motor |
11KW |
|
Cool tower |
Cooling system |
Oil Chiller +fan Cooler |
